Belt Fasteners & Pin
Screw Plate Fasteners
Solid Plate Fasteners for use as rip or emergency repair Fasteners.
Uses a Standard Torx Style.
Rotary Broach.
No special tools required.
Screws are designed to go through various carcass configurations, with a pilot drill tip.
| Fastener Size | Belt Thickness Range mm | Minimum Pulley Diameter mm | Belt Strength N/mm |
| ME140 | 5-11 | 300 | 450 |
| ME190 | 8-17 | 400 | 630 |
ME Series Mechanical Fasteners Data
| Fastener Size | Belt Thickness Range mm | Minimum Pulley Diameter mm | Belt Strength N/mm |
| ME25 | 3.5-7.5 | 75 | 450 |
| ME35 | 4.5-10 | 90 | 630 |
| ME45 | 6-11 | 125 | 650 |
| ME55 | 9-15 | 250 | 1000 |
| Fastener Size | Belt Thickness Range mm | Armoured Connecting Pin φ | Screw Range Applicable mm |
| ME25 | 3.5-7.5 | 4.0 | 4x10-4x12 |
| ME35 | 4.5-10 | 4.6 | 5x10-5x14 |
| ME45 | 6-11 | 6.4 | 5x12-5x16 |
| ME55 | 9-15 | 7.0 | 5x14-5x18 |

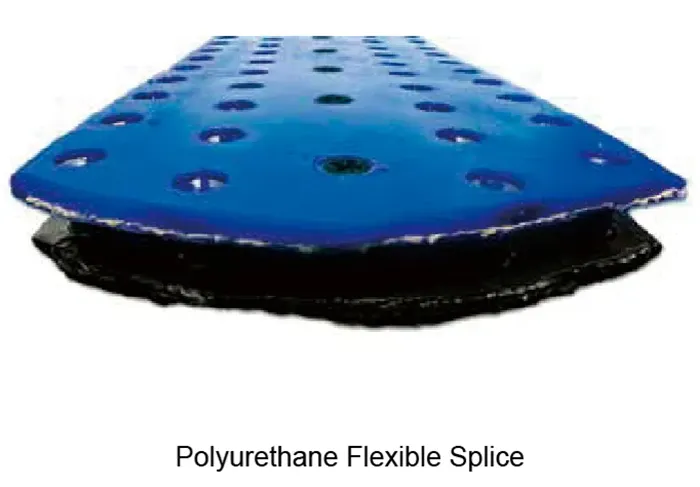

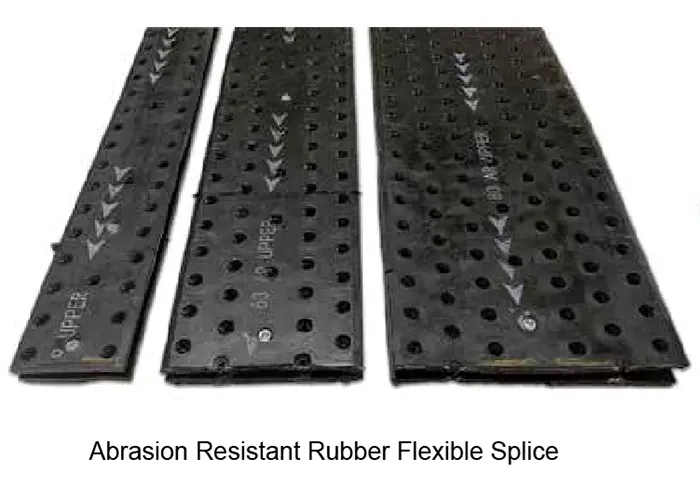

ME Series Rubber Flexible Splice Data
| Rubber Flexible Splice Type | RFS35 | RFS63 | RFS65 | RFS80 | RFS63 | RFS80 | RFS100 |
| Rubber Flexible Splice width, mm | 62 | 110 | 110 | 156 | 110 | 156 | 156 |
| Top Plate Cover Compound | AR | AR | AR | AR | PU | PU | PU |
| Quantity of Screws per metre | 110 | 200 | 200 | 280 | 200 | 280 | 280 |
| Skiving Width first section installed mm | 24 | 50 | 50 | 72 | 50 | 72 | 72 |
| Skiving Width second section installed mm | 38 | 60 | 60 | 84 | 60 | 84 | 84 |
| PZ Bit used | PZ 2 | PZ 2 | PZ 2 | PZ 2 | PZ 2 | PZ 2 | PZ 2 |
| 5mm Spacer used,Belt thickness 4-6mm | 5x12 Screw | 5x14 Screw | 5x16 Screw | 5x16 Screw | 5x14 Screw | 5x16 Screw | 5x16 Screw |
| 7mm Spacer used,Belt thickness 6-8mm | 5x14 Screw | 5x16 Screw | 5x18 Screw | 5x18 Screw | 5x16 Screw | 5x18 Screw | 5x18 Screw |
| 9mm Spacer used, Belt Thickness 8-11mm | 5x16 Screw | 5x18 Screw | 5x20 Screw | 5x20 Screw | 5x18 Screw | 5x20 Screw | 5x20 Screw |
| 11mm Spacer used, Belt Thickness 11-13mm | N/A | 5x20 Screw | 5x22 Screw | 5x22 Screw | 5x20 Screw | 5x22 Screw | 5x22 Screw |
| 13mm Spacer used, Belt Thickness 13-15mm | N/A | N/A | N/A | 5x24 Screw | N/A | 5x24 Screw | 5x24 Screw |
| Final belt thickness Range, mm | 4-11 | 4-13 | 4-13 | 4-15 | 4-13 | 4-15 | 6-15 |
| Maximum belt strength, N/mm | 350 | 630 | 630 | 800 | 630 | 800 | 1000 |
| Minimum pulley φ, mm | 160/200 | 220/300 | 250/300 | 250/350 | 220/300 | 250/350 | 300/350 |
| Thickness top plate （± 1 mm), mm | 4.5 | 5 | 6.5 | 6 | 5 | 6 | 7.5 |
| Thickness bottom plate （± 1 mm),mm | 3.7 | 4 | 4 | 4.5 | 4 | 4.5 | 4.5 |
