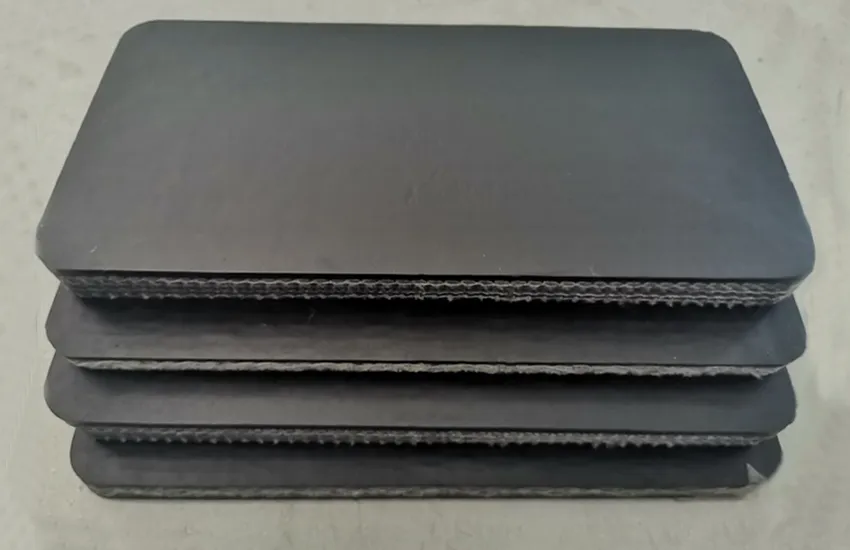

PVG Solid Woven Belt
The PVG solid woven carcass is made from polyester, nylon, and cotton, with certain weaving method, to form a mono-ply carcass that generates tensile strength, support, and main qualities. PVG solid woven belts are with impregnated carcass with PVC paste, then covered with mixture of thermoplastic and rubber for final products. One of the best options for underground flammable, explosive applications.
| Tensile strength | 680N/mm to 3400N/mm |
| Cover thickness | 1.5mm to 8.0mm |
| Width range | 400mm to 2000mm |
| Standards | MSHA / AS4606 / CSA / DIN22109 / SANS971 / BS3289 / JIS-S |
| Accessories | Mechanical belt fasteners |
| Grade (N/mm) | 680 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | 2000 | 2240 | 2500 | 2800 | 3100 | 3400 |
| Min. Warp (N/mm) | 680 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | 2000 | 2240 | 2500 | 2800 | 3100 | 3400 |
| Min. Weft (N/mm) | 265 | 280 | 300 | 350 | 350 | 400 | 400 | 400 | 450 | 450 | 450 | 450 | 450 |
| TESTING ITEM | SPECIFICATION | |
| EN 12881-1:2010 Conveyor Belts – Fire simulation flammability testing – Part 1: Propane burner tests | A length of test piece, not less than 250 mm shall remain undamaged over its full width after all visible flame and visible glow have disappeared | |
| (Gallery test) | ||
| Ignitability and maximum surface temperature of belting subjected to friction | The surface temperature of the drum shall not exceed 325°C, and there shall be no visible flaming or visible glowing | |
| (Drum friction test) | ||
| Electrical resistance | Average of two resistance measurements (both carrying and running side) shall not exceed 300 MΩ | |
| Ignitability and flame propagation characteristics, with spirit burner (Finger burn test) |
According to Testing Standards | |
| Chart A | ||
| With Cover | Average value with flame(s) for all samples ≤3S | |
| Maximum value with flame(s) for any individual sample ≤10S | ||
| Average value with glow(s) for all samples ≤3S | ||
| Maximum value with glow(s) for any individual sample ≤10S | ||
| Chart B | ||
| Without Cover | Average value with flame(s) for all samples ≤5S | |
| Maximum value with flame(s) for any individual sample ≤15S | ||
| Average value with glow(s) for all samples ≤5S | ||
| Maximum value with glow(s) for any individual sample ≤15S | ||
